Wall Steel Formwork

Scope of Application

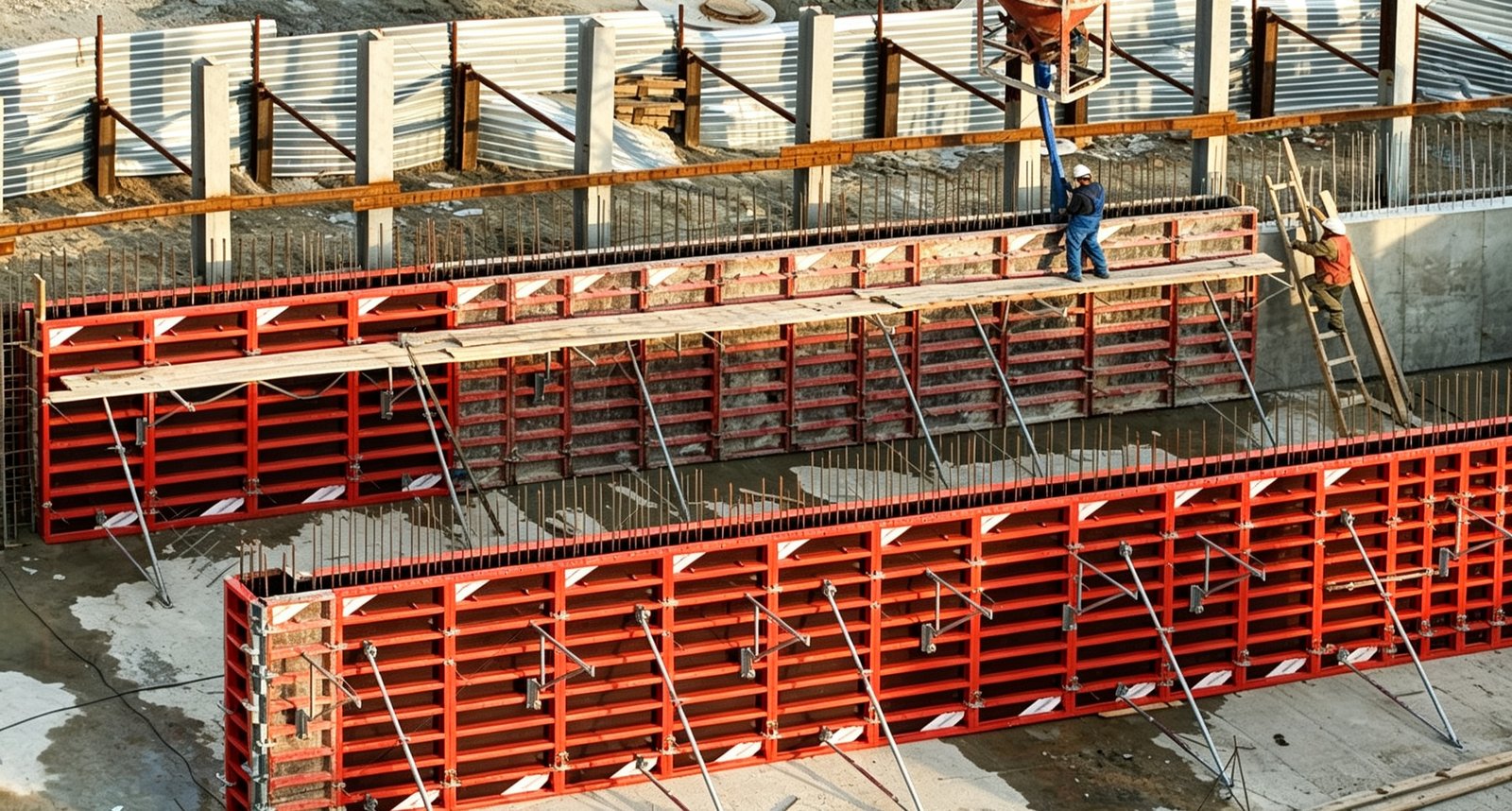

• Building Construction Projects: Construction of concrete shear walls, elevator shaft walls, stairwell side walls, basement walls and core tube walls for high-rise residential buildings, office buildings and factories.
• Municipal Engineering: Casting of municipal retaining walls, crash barriers, pipe trench side walls, box culvert walls, pedestrian passage walls and underground utility tunnel side walls.
• Highway & Railway Engineering: Construction of bridge abutment side walls, culvert walls, subgrade retaining walls, tunnel side walls and slope vertical walls.
• Water Conservancy Engineering: River embankment retaining walls, sluice side walls, pump house walls, reservoir side walls and flood protection revetment structures.
• Prefabricated Assembly Projects: Mass production of precast concrete wall panels, precast boundary wall panels and precast retaining walls.
• Special Infrastructure Projects: Casting of civil air defense walls, underground garage walls, vertical walls for equipment foundations and fire pool walls.

Structural & Technical Advantages

1. Standard Structural Composition

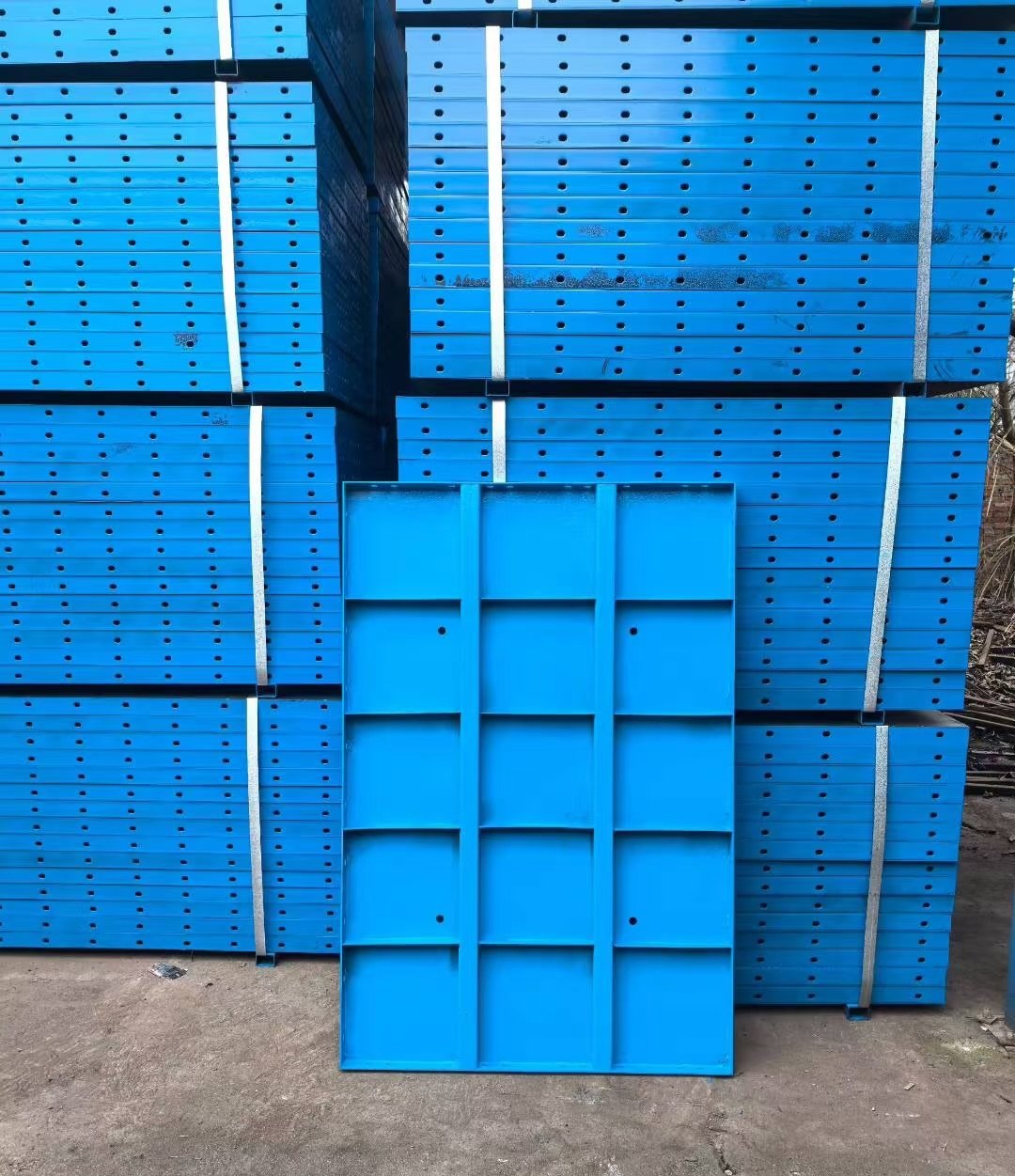

• Forming Panel: Made of national standard hot-rolled steel plate with finely polished flat surface for smooth demolding. The finished concrete surface can reach fair-faced concrete effect.
• Dense Reinforcing Back Ribs: Vertically flat steel and transverse channel steel are fully welded and densely reinforced on the back to enhance overall panel rigidity, disperse lateral concrete pressure and effectively prevent mold bulging, deformation and edge warping.

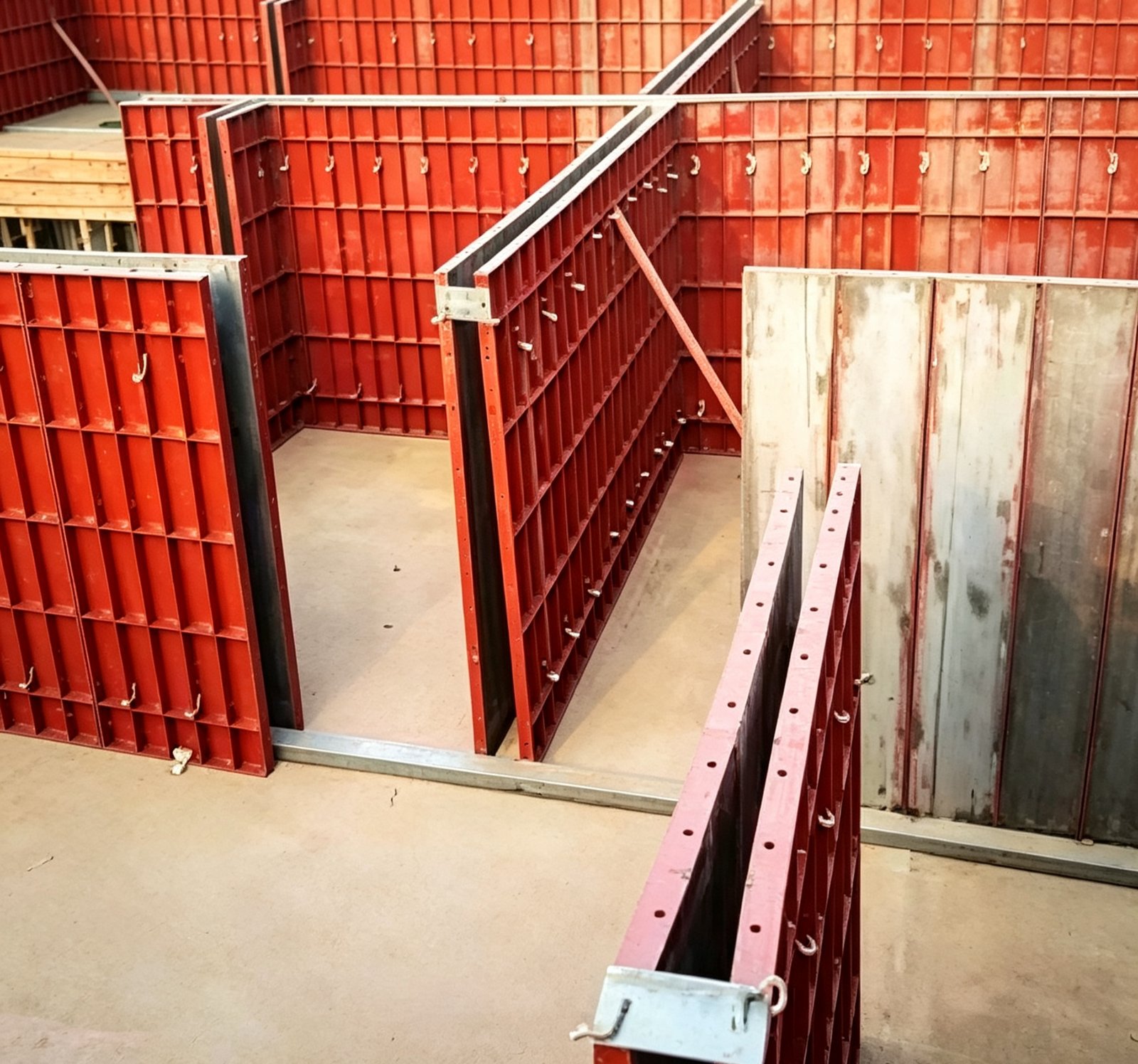

• Standard Connection Structure: Standard flange edges, connecting holes and tie rod holes are reserved around each formwork with precise hole positions for tight splicing and free vertical & horizontal combination assembly.
• Integrated Anti-corrosion Process: The whole panel is sandblasted to remove rust and welding slag, then coated with multi-layer anti-rust primer and topcoat, resisting rain erosion, dampness and construction site collision.
• Standard Modular Design: Adopting national standard universal modular sizes with strong compatibility, perfectly matching industry standard auxiliary materials and support systems.

2. Core Technical Advantages

• High Wall Forming Precision: CNC integrated machining delivers minimal flatness and verticality errors. The cast walls are neat and straight without staggered joints, honeycombs or pockmarks, eliminating large-area plastering and repair work.
• High Rigidity Against Lateral Pressure & Deformation: Integrally welded rigid structure withstands high-intensity lateral concrete pressure, ensuring stable pouring without mold expansion or displacement and uniform wall thickness.
• Leak-proof Splicing Sealing: Closely fitted formwork joints locked by standard bolts completely eliminate common construction defects such as wall slurry leakage, sand holes and root leakage.
• Strong Modular Compatibility: Standard panels can be freely assembled to fit high & low walls, long & short wall surfaces and special-shaped corners, suitable for most civil wall projects.
• Easy Disassembly & Fast Construction: Lightweight integrated module design requires no on-site cutting or welding, enabling quick manual assembly and disassembly to greatly shorten formwork erection and stripping cycles.
• Durable & Long Service Life: Steel panels are collision and wear resistant, adapting to complex open-air construction environments on site.

Comprehensive Application Functions

• Integrated Wall Shaping Function: One-step cast-in-place molding of complete concrete walls with flat, vertical surfaces and square corners, removing secondary leveling and repair procedures.
• Standardized Dimension Control Function: Uniformly restrict wall thickness, height and verticality. Consistent specifications for mass construction deliver unified project appearance and high acceptance pass rate.
• Free Combination & Splicing Function: Standard modules can be arbitrarily spliced, heightened and lengthened to fit large-area walls, staggered-height walls and corner walls.
• Embedded Component Matching Function: Through-wall sleeves, water stop strips and positioning holes for embedded parts can be reserved on demand to guarantee accurate and fixed embedding positions without offset.
• High Reusability Cycle Function: Robust and durable structure allows over 50 cycles of repeated use, transferable across buildings and projects.
• Zero On-site Processing Function: All cutting, bending, welding, hole drilling and anti-corrosion work is finished in the factory. Only assembly and reinforcement are required on site without hot work, ensuring safe and tidy construction.

Product Overview & Comprehensive Advantages

Product Overview

Comprehensive Product Advantages

• Quality Advantage: Smooth panels with sufficient rigidity and low deformation risk produce premium fair-faced concrete walls with precise dimensions, effectively cutting rework and rectification costs.
• Efficiency Advantage: Modular rapid assembly greatly outperforms wooden formwork in erection and stripping efficiency, saving massive labor and shortening the main construction period.
• Cost Advantage: High cycle times and ultra-low wear bring outstanding long-term cost performance, reducing frequent new formwork purchases and large consumption of repair materials.
• Durability Advantage: Integral anti-rust and anti-corrosion treatment offers resistance to collision, dampness and weathering, resisting rust and damage under long-term on-site use.
• Compatibility Advantage: Extensive versatility for multiple scenarios and wall structures, with custom service for all non-standard sizes and special-shaped walls.
• Safety & Environmental Protection Advantage: 100% recyclable steel generates no wood waste. No hot cutting work on site reduces construction safety hazards, complying with green construction standards.
