Bionic Block Steel Formwork

Scope of Application

1. Inland River Water Conservancy Projects: River slope protection, anti-scouring works at river bends, lakeshore restoration, rural water system renovation, stepped grass-planted eco retaining walls;
2. Coastal & Marine Protection Projects: Coastal breakwaters, tidal flat revetments, storm surge wave dissipation layers, artificial reefs, prefabrication of reef blocks for marine ranches, port diversion dykes;
3. Highway & Railway Infrastructure: Ecological subgrade slopes, energy-dissipating slope protection at tunnel entrances and exits, landscape retaining walls in yards, mountain soil and water conservation slopes;
4. Urban Landscape & Municipal Engineering: Park artificial lakes, landscape streams, sponge city grass-planted slope protection, eco retaining walls in residential communities;
5. Mass Production in Precast Component Plants: Standard prefabricated dolos blocks, tetrapod hollow blocks, fish nest masonry units, stone-like interlocking eco frames, stepped slope protection blocks;
6. Rural & Soil Conservation Projects: Terrace ridge protection, small pond and dam protection, barren mountain ecological restoration, farmland water retention works.

Structural & Technical Advantages

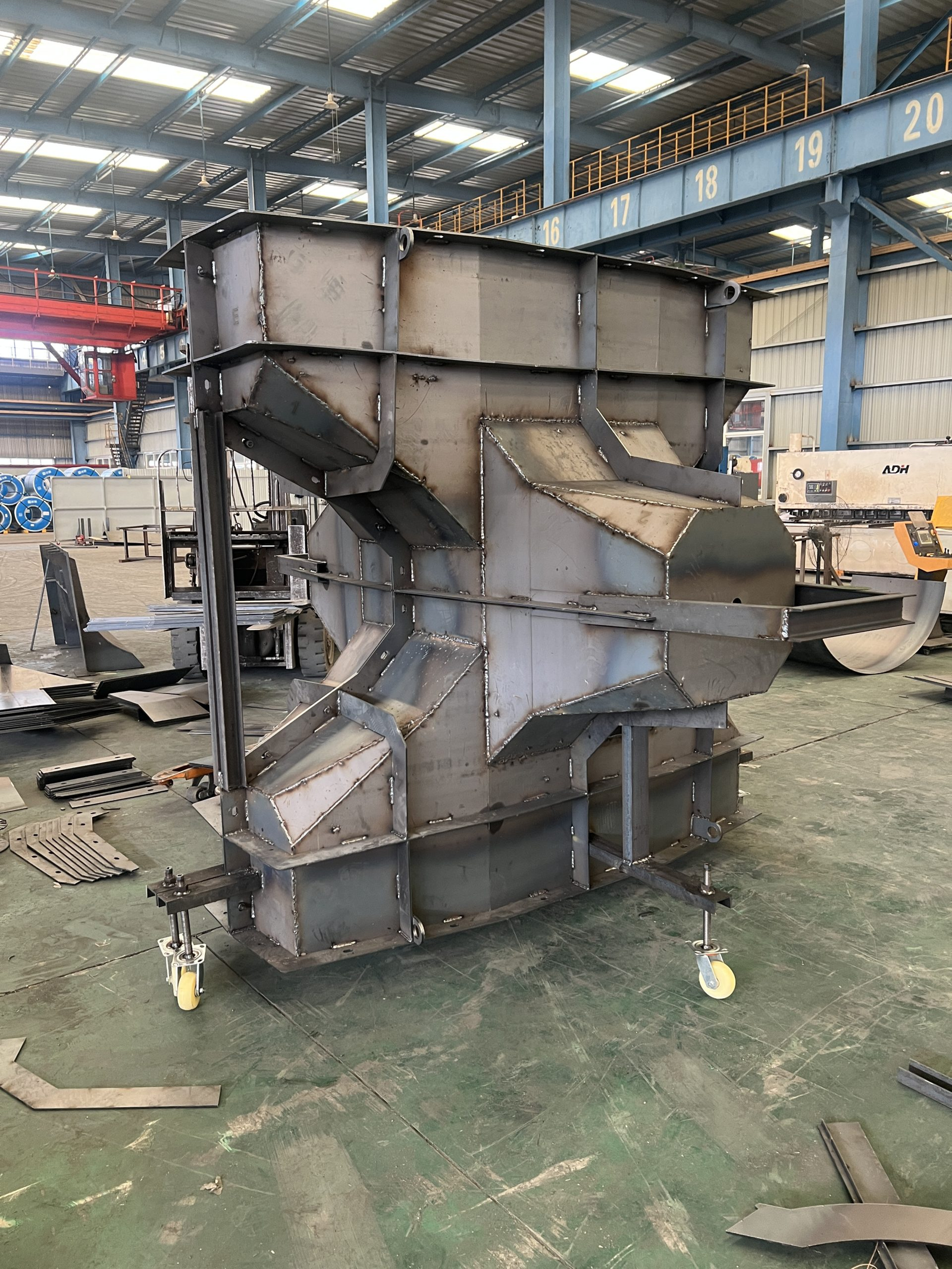

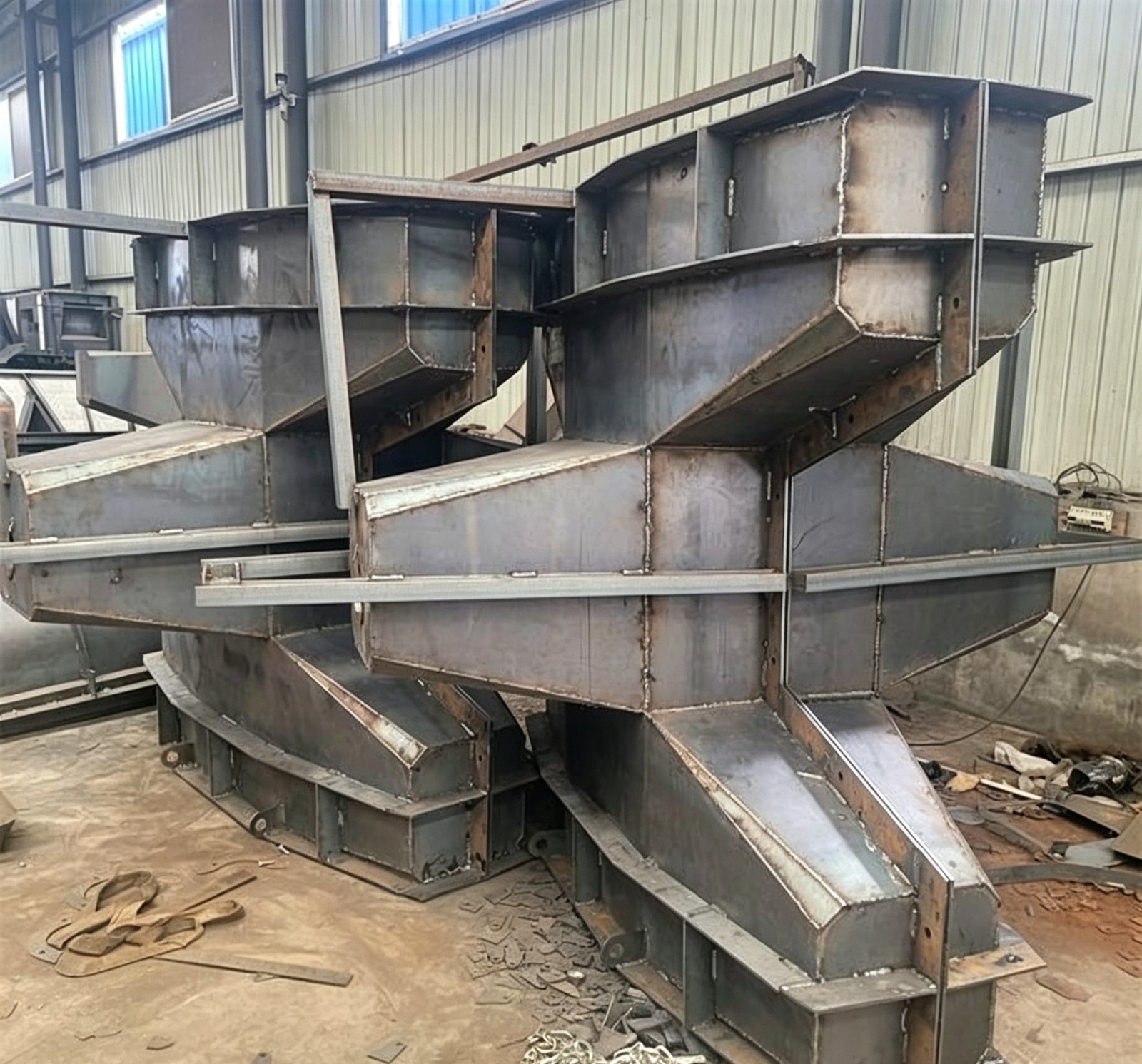

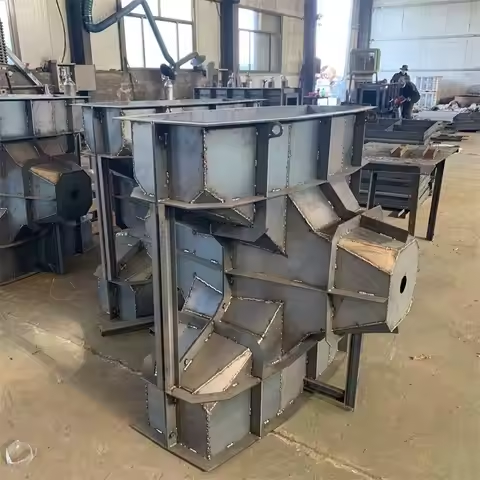

I. Standard Structural Composition

1. Forming Face Plates: Made of national standard hot-rolled steel plates. The cavity is integrally bent into bionic streamline shapes and holes, with optional polyurethane stone-texture liners for smooth demolding and vivid texture reproduction;
2. Multi-layer Densely Reinforced Back Ribs: Fully welded horizontal and vertical channel steel & flat steel reinforcements on the back. Double stiffeners are applied on high-stress areas such as curved surfaces and holes to resist concrete lateral pressure and prevent formwork bulging during pouring;
3. Split Quick-release Buckle System: Equipped with spring quick fasteners and hinge rotating shafts on both sides. A single worker can complete demolding without massive bolts, avoiding damage to concrete components caused by prying and hammering;
4. Standardized Bionic Cavities: Pre-built wave-dissipating curved surfaces, grass planting through holes, fish nest inhabitation chambers and interlocking concave-convex grooves. Hole size, radian and texture patterns can be customized per engineering drawings;
5. Complete Anti-corrosion Treatment: Full sandblasting for rust removal, coated with multi-layer epoxy anti-rust paint. Marine-grade versions can be upgraded to hot-dip galvanizing for superior resistance to salt spray and long-term immersion in water and soil;
6. Standardized Lifting & Positioning Structure: Lifting lugs welded on the top for transportation via overhead cranes in precast plants. Limit bases at the bottom prevent displacement during pouring.

II. Core Technical Superiorities

1. Optimized Bionic Fluid Design: The internal streamlined cavity imitates natural reef contours. Finished blocks disperse water impact and absorb wave energy, greatly reducing risks of bank slope scouring and collapse. Reserved biological habitats simultaneously realize ecological restoration;
2. High Forming Precision & Complete Textures: Fully CNC integrated machining controls component dimensional tolerance within ≤±1 mm. Stone textures, curved surfaces and hole edges are free of burrs and offset joints, eliminating secondary finishing work;
3. High Rigidity & Deformation Resistance: Double-layer reinforcement structure effectively prevents formwork bulging and edge warping during long-term mass pouring, ensuring stable dimensional consistency in batch production;
4. Labor-saving Quick Disassembly for Higher Precast Output: Spring buckle opening and closing mechanism speeds up demolding efficiency by 50% compared with conventional bolt-fixed molds, supporting 24-hour cyclic production in precast factories;
5. Customizable Full Range of Bionic Shapes: Molds can be tailor-made for a complete series of bionic structures including dolos blocks, tetrapod hollow blocks, fish nest frames, stone-like stepped blocks, interlocking lego-style blocks and artificial reefs;
6. Tight Sealing with Zero Slurry Leakage: Closely fitted mold joint surfaces eliminate slurry run-off, honeycombing and pitting during casting, cutting concrete waste loss.

Comprehensive Application Functions

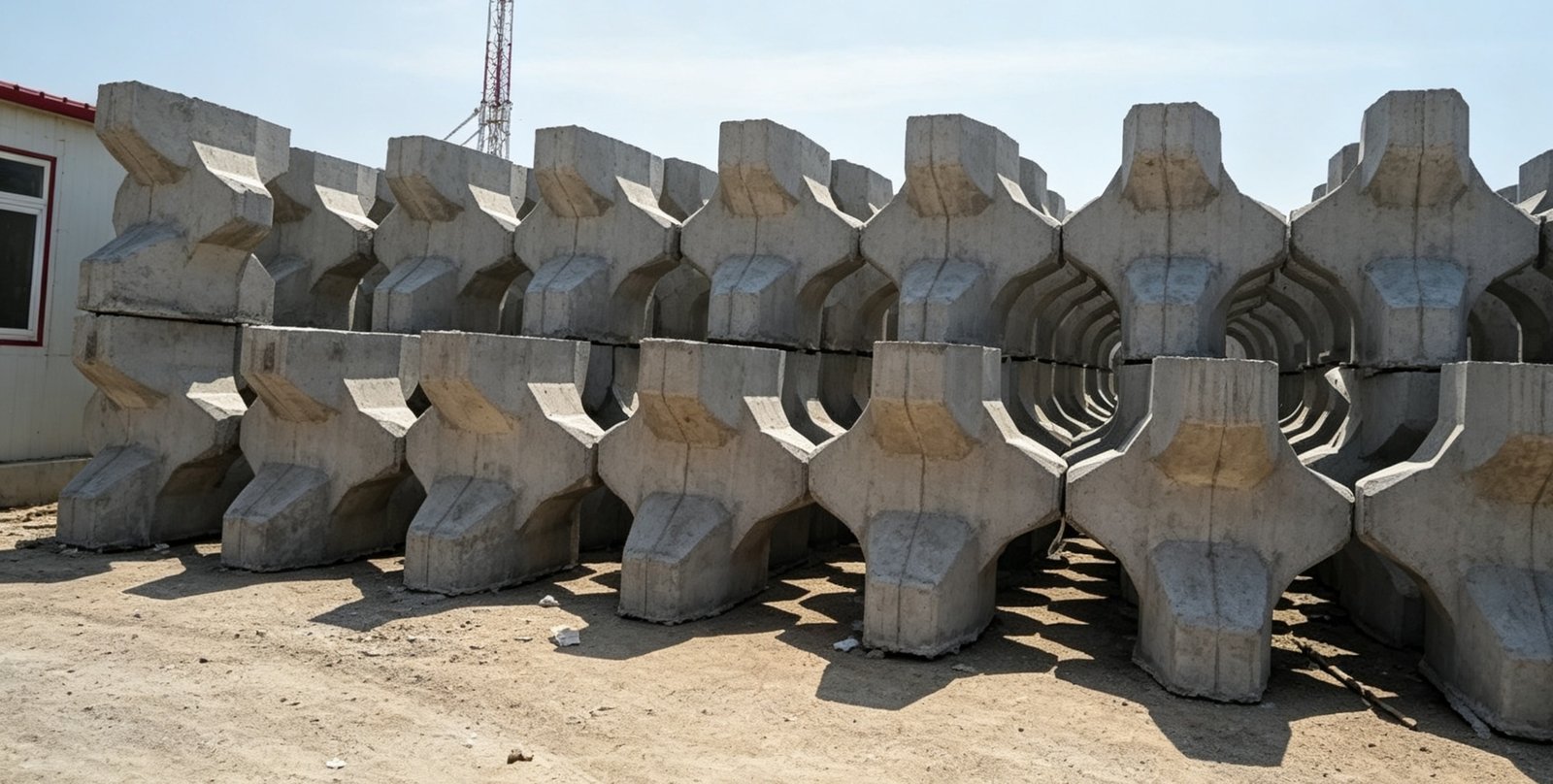

1. One-step Integral Forming of Bionic Components: A single casting process produces complete eco-blocks with preformed holes, curved surfaces, stone textures and interlocking structures, removing post-casting hole drilling and grinding;
2. Dual-function Integration of Soil & Water Protection plus Ecological Restoration: Finished blocks are equipped with grass planting cavities and underwater inhabitation chambers. They stabilize slopes against erosion while purifying water and nurturing aquatic flora and fauna;
3. Standardized Mass Precasting: Uniform cavity specifications guarantee fully consistent dimensions and shapes for mass-produced blocks. Tight interlocking during on-site stacking delivers neat overall project appearance;
4. Adaptable to Stacking & Assembly for Multiple Working Conditions: Built-in concave-convex interlocking structures enable flexible assembly on river channels, coastlines and subgrade slopes with higher stability than ordinary square blocks;
5. Long-cycle Reusable Performance: Wear and impact-resistant steel structure supports 40 to 60 turnover cycles per set, allowing long-term repeated use across multiple orders in precast plants;
6. Zero On-site Machining: All bending, welding, buckling and anti-corrosion procedures are finished in the factory. Precast workshops only need mold closing and pouring, with no cutting, welding or hot work required;
7. Customization for Multi-scenario Adaptation: Adjustable hole permeability, curve radian and block weight cater to diverse working environments including freshwater inland rivers, high salt-spray coastal zones and shallow mountain water areas.

Product Profile & Comprehensive Advantages

Product Profile

Comprehensive Product Advantages

1. Premium Quality: Thickened steel with double-layer reinforcement delivers clear bionic texture reproduction and precise component dimensions. The finished blocks meet all standards for wave dissipation, soil stabilization and ecological functions to pass project acceptance at one time;
2. High Production Efficiency: Quick-release buckle structure drastically shortens demolding time, boosts daily output of precast plants and cuts labor costs;
3. Cost-effectiveness: Far longer turnover service life than plastic molds and thin simple steel molds. Unit procurement cost is amortized through long-term mass production with zero extra expenditure on concrete repair materials;
4. Durable Anti-corrosion Performance: Multi-layer anti-rust coatings are adopted, while hot-dip galvanized marine versions resist severe salt spray corrosion. The molds remain deformation-free and rust-proof under long-term outdoor and workshop service;
5. Flexible Customization: All series of bionic shapes are customizable, ranging from small-size river slope protection units and heavy-duty coastal wave dissipation blocks to marine artificial reef molds manufactured to order;
6. Eco-friendly & Sustainable: 100% recyclable steel eliminates plastic waste pollution. The finished blocks realize harmonious coexistence of soil and water, complying with green construction policies for sponge cities and ecological water conservancy;
7. Construction Safety Guarantee: No on-site hot cutting or welding operations. Lightweight mold opening and closing reduces risks of collision injuries and fire hazards in precast workshops.
